length |
500mm19³⁄₄″ |
---|---|
inside diameter |
13mm¹⁄₂″ |
outside diameter |
15.5mm⁵⁄₈″ |
For Rubes / Veteran / Vintage Brass Horns.
This is the flexible brass tubing which runs from the horn to the horn bulb. This is made in the style of the original old brass conduit/tubing. This is quality tubing and it has twine inserted inside the brass tubing for more strength and flexibility.
The price is per 500mm. For example, if you need 1½ metre, please order 3 items.
Purchased separately you would pay $282.50. Save 20%
The 5-Foot Horn set-up kit includes:
Everything you see is what you need to install your veteran or vintage horn. This will give you everything - except the horn.
length |
approx. 55mm2³⁄₁₆″ |
---|---|
diameter |
15mm - 20mm⁹⁄₁₆″ - ¹³⁄₁₆″ |
Discounted to $8 with the purchase of 1 or more bulb horns, or 2 or more mounting clamps.
Not seeing the discount? Add a bulb horn, or this mounting clamp to your cart.

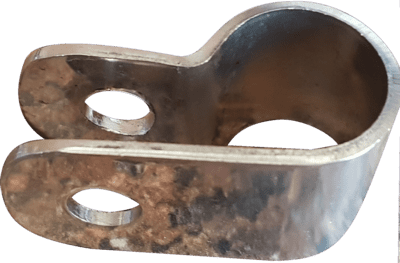

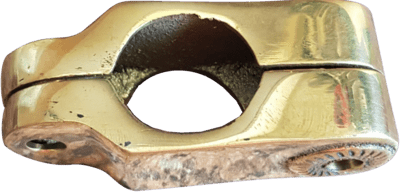

To fit Lucas King of the Road Motorcycle Horn
width |
20mm³⁄₄″ |
---|---|
ID |
20mm³⁄₄″ |

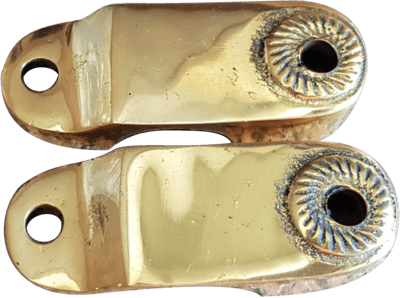

Note - It is recommended you make or locate Insert Liners for inside the Brass clamps to protect your handlebars and to have it grip correctly.
width |
22mm⁷⁄₈″ |
---|---|
ID |
20mm³⁄₄″ |
Should fit 1 inch handlebars.
Note - It is recommended you make or locate Insert Liners for inside the Brass clamps to protect your handlebars and to have it grip correctly.
length |
24mm1″ |
---|---|
inside diameter |
13mm¹⁄₂″ |
outside diameter |
17mm¹⁄₄″ |
This short adapter is double-threaded and is soldered to the horn. It has an internal thread, which the reed is screws into; and an external thread, which the long adapter screws onto.
Outside and inside diameter is the same at both ends.
length |
100mm4″ |
---|---|
inside diameter |
15mm⁹⁄₁₆″ |
outside diameter |
17mm¹⁄₄″ |
You will use 2 of these adapters on a Veteran / Vintage horn using brass conduit.
Outside and inside diameter is the same at both ends.
diameter |
length (end to end) |
||
---|---|---|---|
inside | outside | ||
threaded end |
13mm¹⁄₂″ |
15.5mm⁵⁄₈″ |
32mm1¹⁄₄″ |
opposite end |
16mm⁵⁄₈″ |
19mm³⁄₄″ |

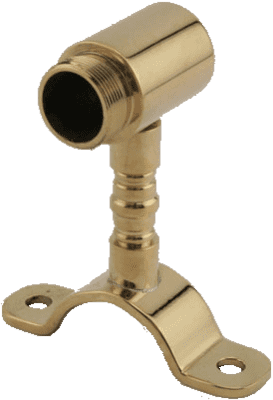

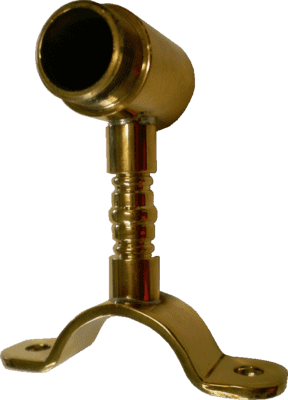

Solder the brass conduit into the plain side of this bracket. The long single-threaded adapter is screwed into the other end (and holds the bulb).
This bracket is then attached to the body of your vehicle.
length |
37mm1⁷⁄₁₆″ |
---|---|
taper center |
10mm³⁄₈″ |
outside diameter |
12mm¹⁵⁄₃₂″ |
The thread is tapered and has a very fine thread of approximately 20 TPI.
length |
65mm2¹⁄₂″ |
---|---|
taper center | n/a (no taper) |
outside diameter |
13.4mm¹⁷⁄₃₂″ |
This reed is screwed into the double-threaded adapter. This reed is made as a direct replacement for Veteran Car horns (e.g. Rubes).
The thread is very fine and the tube is parallel.

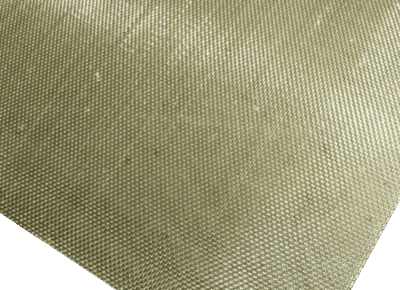

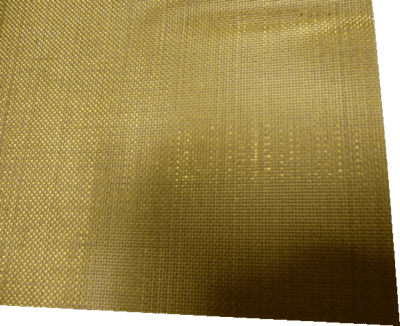

size |
150mm5⁷⁄₈″x 150mm5⁷⁄₈″ |
---|---|
mesh | ultra fine |
gap between wires |
0.076mm |
wire diameter |
0.050mm |
approx. open space | 47% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.

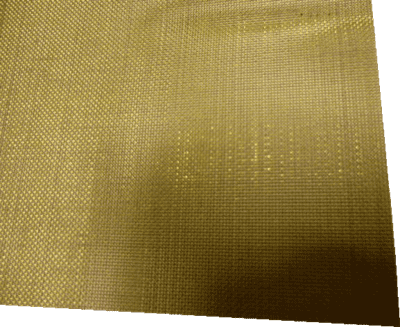

size |
300mm11³⁄₄″x 150mm5⁷⁄₈″ |
---|---|
mesh | ultra fine |
gap between wires |
0.076mm |
wire diameter |
0.050mm |
approx. open space | 47% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.

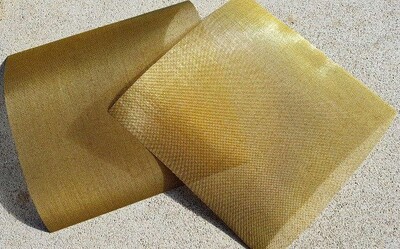

size |
150mm5⁷⁄₈″x 150mm5⁷⁄₈″ |
---|---|
mesh | super fine |
gap between wires |
0.131mm |
wire diameter |
0.080mm |
approx. open space | 44% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.

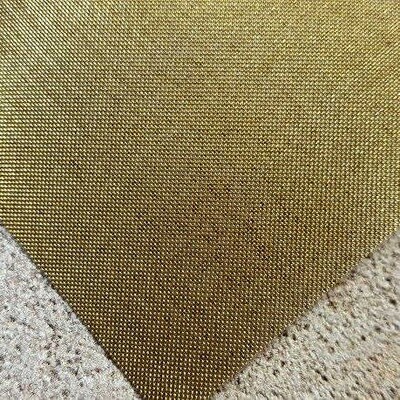

size |
300mm11³⁄₄″x 150mm5⁷⁄₈″ |
---|---|
mesh | super fine |
gap between wires |
0.131mm |
wire diameter |
0.080mm |
approx. open space | 44% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
150mm5⁷⁄₈″x 150mm5⁷⁄₈″ |
---|---|
mesh | fine |
gap between wires |
0.400mm |
wire diameter |
0.220mm |
approx. open space | 41% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
It is also used in fuel filters and sump filters.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
300mm11³⁄₄″x 150mm5⁷⁄₈″ |
---|---|
mesh | fine |
gap between wires |
0.400mm |
wire diameter |
0.220mm |
approx. open space | 41% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
It is also used in fuel filters and sump filters.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
150mm5⁷⁄₈″x 150mm5⁷⁄₈″ |
---|---|
mesh | fine to medium |
gap between wires |
0.445mm |
wire diameter |
0.180mm |
approx. open space | 36% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
300mm11³⁄₄″x 150mm5⁷⁄₈″ |
---|---|
mesh | fine to medium |
gap between wires |
0.445mm |
wire diameter |
0.180mm |
approx. open space | 36% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
150mm5⁷⁄₈″x 150mm5⁷⁄₈″ |
---|---|
mesh | medium |
gap between wires |
1.020mm |
wire diameter |
0.240mm |
approx. open space | 33% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
size |
300mm11³⁄₄″x 150mm5⁷⁄₈″ |
---|---|
mesh | medium |
gap between wires |
0.710mm |
wire diameter |
0.320mm |
approx. open space | 48% |
This brass mesh is fitted on many Brass horns - e.g. King of the Road, Rubes, Nonpareil, etc.
If you would like larger sizes, please contact me for a quote.
This item has free shipping within Australia.
