Radiator Workshop Equipment

Greg Stephens Trading Company logo

All items on this page are manufactured by Greg Stevens Trading Company, and are products of Queensland, Australia.

Ridge Roller

Ridge Roller
#eq-02
~
already
in cart
next is
$~
AUD

RIDGE ROLLER or BEAD ROLLER or RIDGE FORMER

This is a tool to suit a variety of industries. Tubes and pipes, down to an internal diameter of 25mm1″, as well as flat sheets can have a ridge applied. This compact unit rolls a neat ridge around copper, brass, aluminium, steel or stainless steel fittings to securely hold hoses in place.

USES

  • Radiators and cooling systems (both copper/brass and aluminium)
  • Intercoolers and all associated pipe work
  • Chassis building, and
  • Race car building

All the roller requires is a vice to be held down - No special benches - Use it and store it back into your tool draw.

CAPACITIES

Copper & Aluminium 3mm¹⁄₈″ easily
Brass & Steel 2mm⁵⁄₆₄″ with *care
Stainless 1.6mm¹⁄₁₆″

With *care means, the Ridge Roller will do the job with special care. With softer materials you might just set the depth and roll the ridge in one turn. Thicker and harder materials will require multiple adjustments to create the ridge over several turns.

It is impossible to make a Ridge Roller small enough to enable it to be used in small tubes down to 25mm1″, yet bulky enough to allow ridges in heavy and stronger materials with one turn.

All parts are CNC machined with the actual rollers being 4140 stock. All parts are Zinc-plated before assembly, for presentation.

The label repeats these thoughts: "Common sense dictates its capabilities"

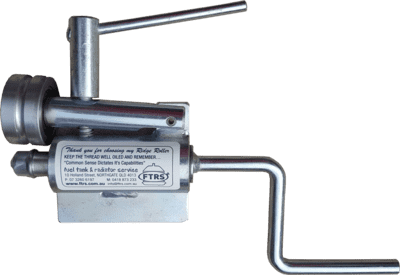

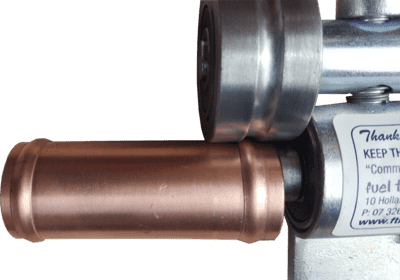

Product image of EQ-02 Product image of EQ-02 Product image of EQ-02

Radiator Jig

Radiator Jig

*6mm1/4" Holding Plates (200mm8" square) are covered by 6mm1/4" insertion rubber - the core can't move and won't be crushed.

*Lower Holding Plate mounting consists of sturdy pipe inside pipe with a fully welded collar to take the weight applied (no split pins to wear out).

*Top Holding Plate winder is 25mm1" solid threaded bar through solid threaded block 76mm3" long.

*Fully floating bearing on top Holding Plate allows for accident damaged and twisted cores.

*Fully welded 6mm1/4" plate corner gussets for strength.

*Pivot made from 50mm2" solid bar set through R.H.S. box section and fully welded both sides for strength.


Radiator Jig

*Pivot passes through adjustable 6mm wall section and can be tightened to your desired setting.

*Post made from heavy 6mm wall steam pipe with insert reaching down more than two thirds of the overall depth with fully welded collar. 1.6mm1/16" clearance between inside and outside pipes allows very firm 360 degree turning ability.

*Fully welded and gusseted 10mm3/8" base plate (305mm12") by (450mm17_11/16") pre-drilled for your convenience.

*Rotating Holding Arms are made of heavy 76mm wall R.H.S. for long life and strength.


Overall Dimensions

Post Height to centre of pivot point 915mm36"
Holding Arms (internal depth) 380mm15"
Holding Arms (internal width) 610mm24"
Shipping weight 48kg

The Radiator Jig is not available for on-line purchase. Contact us if you wish to purchase.
